Air-Con 2 Zone 18000 BTU 22 SEER 230v Multi Split Air Conditioner


"2 Zone Outdoor Unit" is required
"2 Zone Compatible Indoor Units" is required
Selection limit, min=0; max=1
"Select 9K Indoor Unit #1" is required
"Select 9K Indoor Unit #2" is required
"Select 12K BTU Indoor Unit #2" is required
BTU: 18000 BTU
Price:
$1,379.00 USD

Heat & Cool -Enjoy year round comfort with the ability to heat or cool your room or space. Build your multi-zone unit with compatible Outdoor and Indoor units.

  • The 18,000 BTU Outdoor unit is a high efficiency air conditioner, heater and dehumidifier all in one. Built with pro-grade materials for a long life.
  • Mix & match compatible Indoor units to complete your dual zone A/C system.
Energy Savings - With up to 22 SEER rating**, you can save money on your monthly electricity bill!

 Package Includes:
18,000 BTU Outdoor Unit
Two Compatible Indoor Units with Remotes



 Installation Items Sold Separately Quantity Needed
1/4"x3/8" Copper Lineset 25' 2 - one per Indoor Unit
Outdoor Unit Wall Bracket Stainless Steel 1 - one per Outdoor Unit
Power Cables - 10-3 gauge super service wire (For lengths over 25 feet) or 12-3 gauge super service wire (For lengths under 25 feet) 1 - one per Outdoor Unit. These cables can be found at a local hardware or electric supply store. For more info, click here
Signal Cables - 16-4 or 14-4 gauge super service wire 2 - one per Indoor Unit. These cables can be found at a local hardware or electric supply store. For more info, click here

Note: Licensed HVAC technician required for proper installation and maintenance.

** This unit's AHRI Reference Number is 205150432 .

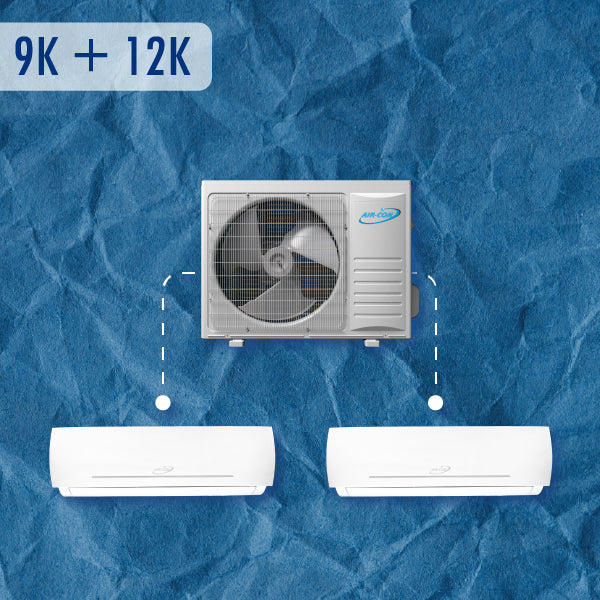

Compatible Indoor Units Two Unit Combinations

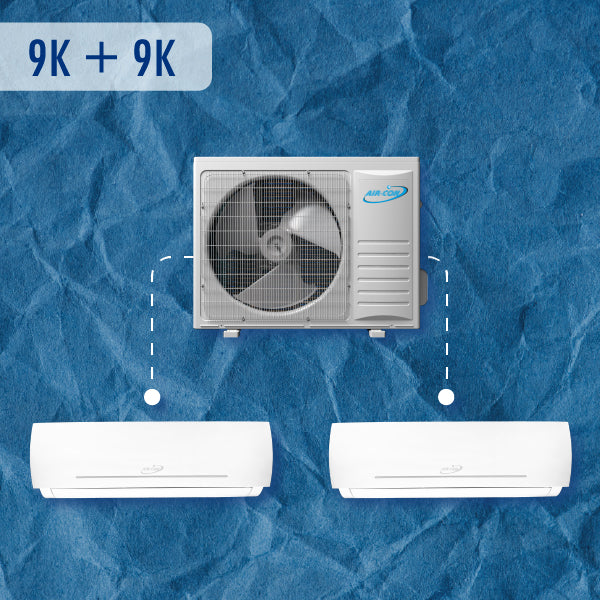

Wall: 9K & 12k 9 + 9
Ducted: 9K & 12k 9 +12
Cassettes: 9K & 12K



Technology:

CERIFICACION_INVERTER  inverter  energy star  intertek CERIFICACION_AHRI

OUTDOOR UNIT SPECS

OUTDOOR18K

Model
AMSCI4H4S18
Voltage/Frequency/Phase 208/230 - 60 Hz - Single Phase
Cooling Capacity 18000
Heating Capacity 18000
Watts 1440
Amperage 6.5
Operating Ambient Temperature 14° F Cooling / -13° F Heating
Outdoor Unit Dimensions 33-7/8" x 26-3/8" x 12-1/4"
Lineset Size 1/4" & 3/8"




9K INDOOR UNITS

9,000 BTU COMPATIBLE UNITS

Wall Mounted

INDOOR_9K-05

Model
ABXEM4H4S09
Voltage/Frequency/Phase 208/230 - 60 Hz - Single Phase
Cooling Capacity 9000
Heating Capacity 9000
Watts 2638
Amperage 0.11
Unit Dimensions 37-3/8" x 10-3/4" x 8-1/8"
Lineset Size 1/4" & 3/8"



Ceiling Cassette

INDOOR_CASSETTE_9K

Model
ASLEC4H4S09
Voltage/Frequency/Phase 208/230V - 60Hz - 1 phase
Cooling Capacity 9000
Heating Capacity 9000
Watts 2638
Amperage 0.25
Indoor Unit Dimensions 22 7/16" x 8 7/16" x 22 7/16"
Lineset Size 1/4" & 3/8"



Ducted Type

INDOOR_DUCTED_9K

Model
ASLEK4H4S09
Voltage/Frequency/Phase 208/230V - 60Hz - 1 phase
Cooling Capacity 9000
Heating Capacity 9000
Watts 2638
Amperage 0.25
Indoor Unit Dimensions 35-7/8" x 7-7/2" x 17-1/2"
Lineset Size 1/4" & 3/8"



12K INDOOR UNITS

12,000 BTU COMPATIBLE UNITS

Wall Mounted


INDOOR_9K
Model
ABXEM4H4S12
Voltage/Frequency/Phase 208/230 - 60 Hz - Single Phase
Cooling Capacity 12000
Heating Capacity 12000
Watts 3517
Amperage 0.11
Unit Dimensions 37-3/8" x 10-3/4" x 8-1/8"
Lineset Size 1/4" & 3/8"



Ceiling Cassette
INDOOR_CASSETTE_12K
Model
ASLEC4H4S12
Voltage/Frequency/Phase 208/230V - 60Hz - 1 phase
Cooling Capacity 12000
Heating Capacity 12000
Watts 3517
Amperage 0.25
Indoor Unit Dimensions 22 7/16" x 8 7/16" x 22 7/16"
Lineset Size 1/4" & 3/8"



Ducted Type
INDOOR_DUCTED_9K
Model
ASLEK4H4S12
Voltage/Frequency/Phase 208/230V - 60Hz - 1 phase
Cooling Capacity 12000
Heating Capacity 12000
Watts 3517
Amperage 0.25
Indoor Unit Dimensions 35-7/8" x 7-7/16" x 17-1/2"
Lineset Size 1/4" & 3/8"






    WARRANTY



    Warranty Details

    For our full details, please visit the Air-Con International Warranty Information page.

    Already purchased our product and would like to register your unit? Please visit our Warranty Registration page.
